How to install an LED light bar on an F150?

The step-by-step guide “How to install an LED light bar on an F150” provides clear instructions on how to install an LED light bar on your F150 truck. It explains the benefits of having an LED light bar and outlines the process in a simple and easy-to-follow manner. Whether you’re looking to enhance visibility or upgrade the look of your vehicle, this guide has got you covered. By following the step-by-step instructions, you’ll be able to successfully install an LED light bar on your F150 in no time.

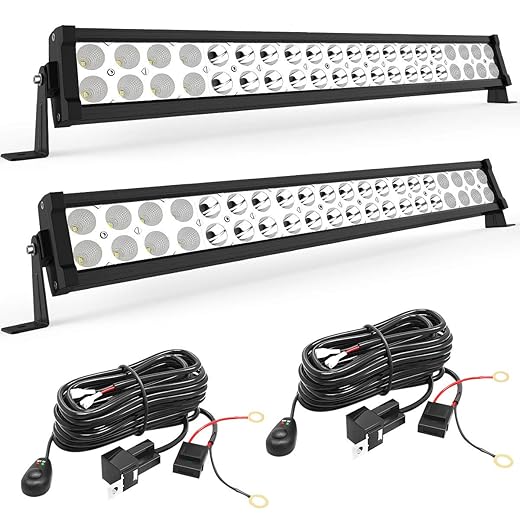

Top-Rated LED Light Bars for F150


Gather the necessary tools and materials

To ensure a smooth installation process, it is essential to gather all the necessary tools and materials before getting started. Here’s a comprehensive list of items you’ll need:

  • LED light bar: This is the main component that will provide bright illumination for your vehicle. Make sure you choose the appropriate size and style according to your requirements.
  • Mounting brackets: These brackets will securely attach the LED light bar to your vehicle. Ensure they are compatible with both the light bar and your specific vehicle model.
  • Wiring harness: This essential component will connect the light bar to the vehicle’s electrical system. It typically includes a relay and a fuse to protect against electrical damage.
  • Relay: The relay is responsible for switching the power supply to the LED light bar on and off. It is important for proper functioning and preventing any electrical issues.
  • Switch: You’ll need a switch to conveniently control the light bar. Choose a switch that suits your preference and is compatible with your vehicle’s interior or exterior design.
  • Connectors: These will be used to connect the wiring harness, relay, switch, and various other electrical components together. Make sure you have an assortment of connectors to accommodate different wire sizes.
  • Electrical tape: This is necessary for insulating bare wires and preventing electrical shorts. It is important to use high-quality electrical tape to ensure a secure and safe connection.
  • Wire strippers: These tools will be used to remove insulation from the wires, allowing for proper electrical connections. Make sure you have wire strippers that are suitable for the gauge of wire you are working with.
  • Wrench and screwdriver: Depending on the mounting brackets and the specific installation method, you may need a wrench and a screwdriver to secure the light bar and brackets to your vehicle.

By ensuring you have all these tools and materials at hand, you’ll be ready to embark on a successful LED light bar installation.


Choose the mounting location

Decide on the perfect mounting location for your new LED light bar on your F150 by considering a few important factors. First, think about visibility. You’ll want to choose a spot where the light bar can provide maximum illumination and be easily seen. Secondly, consider functionality. Determine if the mounting location allows the light bar to be positioned in a way that optimizes its coverage and effectiveness. Finally, think about aesthetics. Find a mounting location that not only enhances the functionality but also adds to the overall look of your F150.

See also  How to Install LED Recessed Lights in 5 Easy Steps

One popular mounting location for LED light bars on F150s is the front bumper. To mount the light bar on the front bumper, start by identifying the desired position and making sure the area is clean and free from obstructions. Then, use the provided brackets to secure the light bar firmly onto the bumper. Ensure that the light bar is aligned properly and securely fastened to ensure it remains in place, even during rough off-road adventures.

Another option is to mount the LED light bar on the roof rack. Begin by locating the ideal position on the roof rack that provides good visibility and functionality. Attach the brackets to the light bar and securely mount the assembly to the roof rack using the provided hardware. Make sure the light bar is level and properly aligned before tightening the bolts. Additionally, check the height of the light bar to ensure it does not interfere with any overhanging obstacles.

Lastly, you can choose to mount the LED light bar on the grille. This location gives your F150 a sleek and integrated look. To mount it on the grille, carefully remove the grille assembly and identify the suitable spot for the light bar. Attach the brackets to the light bar and then attach the assembly to the grille, making sure it is centered and aligned correctly. Finally, reassemble the grille, ensuring that everything is securely in place.

Remember that before attempting any mounting, always refer to the manufacturer’s instructions for your specific LED light bar and F150 year and model.


Prepare the mounting brackets

To prepare the mounting brackets for your LED light bar, follow these simple steps:

  1. Determine the Need: Check if your LED light bar already includes mounting brackets. If not, you’ll need to purchase or fabricate them separately.
  2. Compatibility Check: Ensure that the brackets you obtain are compatible with your F150 truck and the chosen mounting location. Different models and mounting positions may require specific brackets.
  3. Read Manufacturer’s Instructions: Consult the manufacturer’s instructions that came with your LED light bar to identify any specific requirements or recommendations for installation.
  4. Bracket Selection: Choose the appropriate mounting brackets based on your F150 truck model and the desired mounting location. There are various types available, such as roof brackets, bumper brackets, or windshield brackets. Consider the aesthetics, functionality, and durability of the brackets in making your decision.
  5. Purchase or Fabricate: Procure the selected mounting brackets either by purchasing them from an authorized dealer or by fabricating them if you have the necessary tools and expertise. Fabrication may involve cutting, bending, or welding metal brackets to suit your specific requirements.
  6. Installation: Follow the manufacturer’s instructions for installing the brackets onto your F150 truck. This typically involves securely attaching the brackets to the truck frame or existing mounting points. Be sure to use appropriate hardware, such as bolts, nuts, and washers, as specified by the manufacturer.
See also  Achieve Perfect Ambiance with Can Lighting Layout Tips

By following these steps, you can ensure that your LED light bar is properly mounted on your F150 truck, providing optimal illumination and enhancing its overall appearance.


Install the LED light bar

Secure the LED light bar to your F150 using the mounting brackets provided. First, choose the desired location where you want to install the light bar. Ensure that it is centered and aligned properly. Using the included screws or bolts, tightly fasten the mounting brackets to the chosen location. Make sure the brackets are securely attached to the vehicle. Once the brackets are in place, slide the LED light bar into the brackets and align it accordingly. Finally, tighten the screws or bolts on the brackets to firmly secure the light bar in its position. Enjoy your newly installed LED light bar and the enhanced visibility it provides on your F150.


Wire the LED light bar

To connect the wiring harness to the LED light bar, first ensure that you have the necessary tools and equipment, including the wiring harness, LED light bar, relay, switch, and power source. Follow these simple steps to get everything set up smoothly:

  1. Locate the wiring harness connector on the LED light bar and match it with the corresponding connector on the wiring harness.
  2. Align the connectors and firmly push them together until they click into place. Ensure a secure connection to avoid any electrical issues later on.

Run the wiring harness along the frame or under the vehicle

Once the wiring harness is connected to the LED light bar, it’s time to position it along the frame or under the vehicle. Pay attention to the following steps to ensure proper installation:

  1. Identify a suitable spot to run the wiring harness, ensuring it is clear from any moving parts or potential damage.
  2. Attach the wiring harness securely to the frame or under the vehicle using cable ties or clips. This step will prevent any loose wires and protect the harness from potential damage caused by vibrations or rough terrain.

Connect the wiring harness to the relay, switch, and power source

The final step is to connect the wiring harness to the relay, switch, and power source. Follow these instructions provided by the manufacturer for a correct and safe setup:

  1. Locate the relay and switch, typically included with the LED light bar kit. Connect the appropriate wires from the wiring harness to the relay and switch following the manufacturer’s instructions. Ensure a secure connection for proper functioning.
  2. Identify a suitable power source, such as the vehicle’s battery, following the manufacturer’s recommendations. Connect the necessary wires from the wiring harness to the power source, ensuring a solid and reliable connection.
See also  Easy Guide: How to Wire Low Voltage Lighting at Home

Remember to test the LED light bar after completing the wiring process to ensure everything is working as intended. Enjoy your well-lit adventures with your newly wired LED light bar!


Test and adjust

Before finalizing the installation, it is important to test the LED light bar to ensure it is functioning correctly. Follow these steps to test and adjust the light bar:

  1. Connect the light bar to the power source according to the manufacturer’s instructions.
  2. Turn on the power source and check if the LED light bar turns on. If it does not, proceed to the next step.
  3. Inspect the mounting brackets of the light bar and make sure they are securely attached. If any adjustments are needed, loosen the bolts and reposition the brackets until they are properly aligned.
  4. Examine the wiring connections and ensure they are tightly secured. If any loose connections are found, reconnect them and apply electrical tape to provide additional security.
  5. Turn on the power source again and verify if the LED light bar is now functioning correctly. If it still does not work, consider checking the power source or seeking professional assistance.

Once you are satisfied with the functionality of the LED light bar, it is time to tidy up any loose wiring. This will not only improve the aesthetics of the installation but also prevent any potential hazards. Follow the steps below to tidy up the wiring:

  1. Identify any loose or dangling wires and gather them together.
  2. Use electrical tape to secure the wires neatly against the mounting brackets or any nearby surfaces. Make sure to wrap the tape tightly enough to hold the wires in place but not too tight to damage them.
  3. Trim any excess wire length if necessary, using wire cutters or scissors. However, ensure that you leave enough wire length for future adjustments or repairs.

By following these instructions, you can test, adjust, and tidy up the LED light bar installation effectively, ensuring it is functioning correctly and maintaining a clean and safe appearance.

The Final Steps

In conclusion, I hope this blog post has provided you with clear and concise steps on how to install an LED light bar on your F150. It’s important to remember to consult the manufacturer’s instructions and prioritize safety throughout the installation process. Once you’ve completed the installation, you can look forward to better visibility and a stylish upgrade for your F150. Enjoy your newly installed LED light bar and happy driving!
