Engrave Clear Acrylic with Diode Laser: How-To Guide

Ever thought about making personalized engravings on clear acrylic with a diode laser? This guide will show you how, from picking the right tools to mastering engraving techniques. You’ll learn to make amazing, custom acrylic projects by the end.

With the right tools, like Monport’s 40W Pro CO2 Laser Engraver, you can get top-notch results. This guide covers the basics and offers useful tips for a smooth engraving process. Let’s explore the art and science of engraving clear acrylic with a diode laser, making each piece a showcase of your skill.

Key Takeaways

• Understanding the fundamentals of engraving clear acrylic.
• Importance of selecting appropriate diode laser equipment.
• Insights into acrylic material properties and their impact on engraving.
• Steps to properly prepare the acrylic surface before engraving.
• Tips for safely and effectively using diode lasers.
• Guidelines for configuring laser engraving software for optimal results.
• Post-engraving cleanup and maintenance best practices.

Selecting the Right Diode Laser

Choosing the right diode laser is key for top-notch laser engraving on clear acrylic. Knowing the diode laser specs is crucial. It ensures the best performance and unlocks many business chances in laser engraving.

Power Range Considerations

The power of the diode laser is a major factor. For engraving clear acrylic, a power of 2 to 10 watts is best. This range helps make clean cuts and engravings without damaging the material.

It’s important to check the needs of your project. Even though top brands like the Monport 40W Pro CO2 Laser Engraver are recommended, your project might need something different.

Laser Specifications

Other specs like beam quality, focus, and wavelength are also key. A high beam quality means finer details. Adjustable focus is great for different material thicknesses.

Matching these specs to your project can really boost your business in laser engraving.

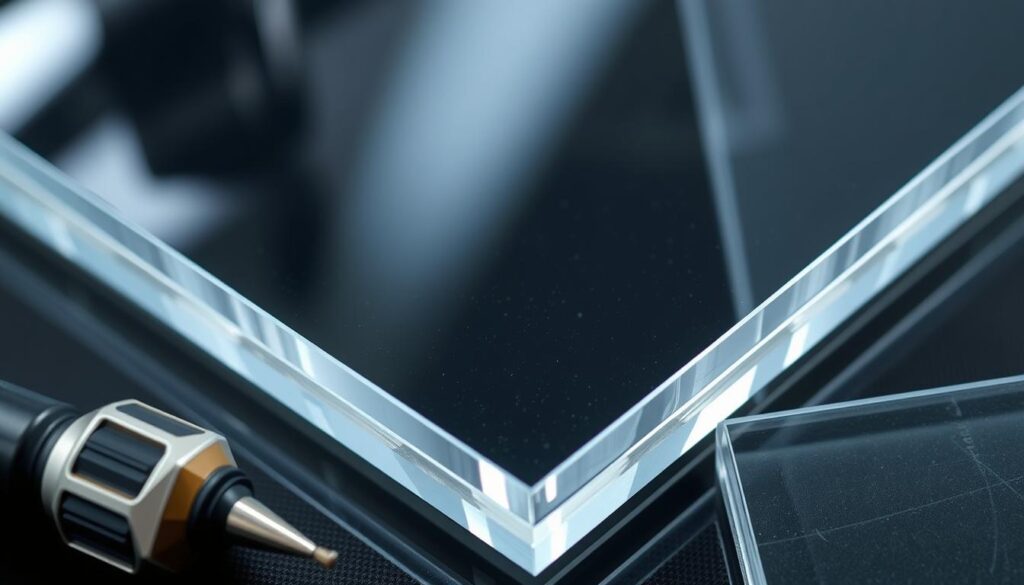

Understanding Acrylic Material Properties

Exploring the acrylic material properties is key for great laser engraving results. Knowing these properties helps you pick the right acrylic and use the best engraving techniques.

Types of Acrylic: Cast vs. Extruded

Choosing between cast and extruded acrylic is important in acrylic engraving. Each type has its own traits that impact the engraving process.

Why Clear Acrylic Requires Special Handling

Clear acrylic is tricky because of its transparency and how it reacts to laser light. It needs special care to avoid heat distortion and light reflection, which can ruin your engraving.

For top-notch results, follow these acrylic engraving design tips:

• Make sure it cools down properly to avoid overheating.
• Use masking tape to cut down on reflections and make your engraving clearer.
• Test different settings on scrap pieces to find the perfect balance of speed and power.

The choice between cast vs. extruded acrylic also affects how you work with clear acrylic. Each type reacts differently to laser exposure. So, adjusting your methods is crucial for excellent engravings.

How to Engrave Clear Acrylic with Diode Laser

Engraving clear acrylic with a diode laser needs precision and knowledge of specific *laser engraving techniques*. This guide will help you get professional results while *mastering diode laser engraving*.

1. Preparing Your Workspace: Make sure your workspace is clean and free of dust. Secure the acrylic piece to avoid movement.
2. Setting Up the Diode Laser: Calibrate the diode laser as the manufacturer suggests. Use a lower power to avoid melting the acrylic.
3. Initial Laser Settings: Start with these settings:
   • Power: 10-20%
   • Speed: 300-500 mm/min
   • Passes: 2-3

   These settings help engrave the material well without damaging the acrylic.

4. Testing and Adjusting: Test on a scrap piece first. Adjust settings as needed. This step helps perfect your engraving.
5. Engraving Process: After testing, engrave the actual piece. Watch closely to avoid mistakes or overheating.

Here’s a table comparing different diode laser settings and their effects on clear acrylic:

By following these steps and adjusting your laser settings, you can get crisp engravings on clear acrylic. This way, you’ll *master diode laser engraving* for your projects.

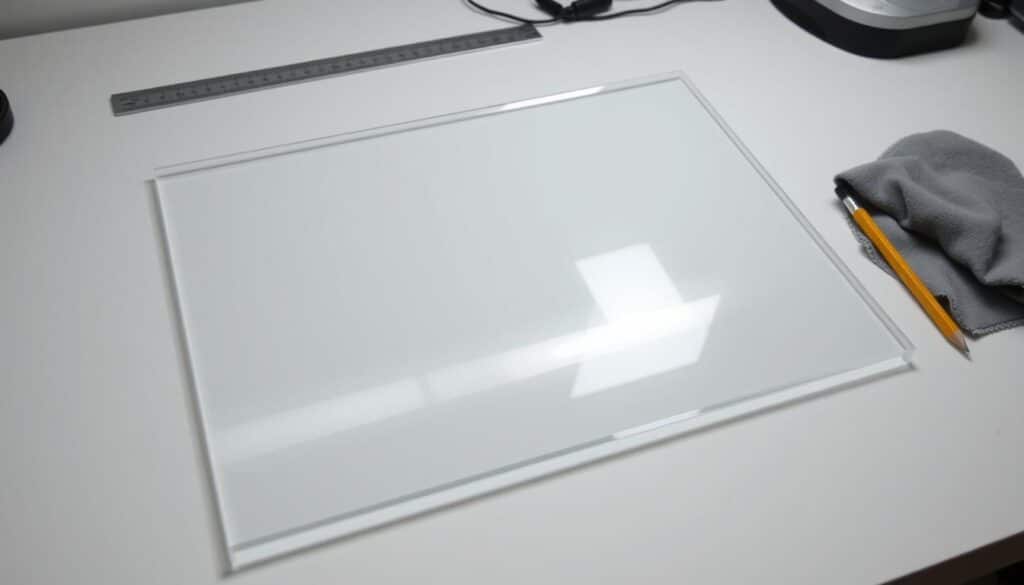

Preparing the Acrylic Surface

Getting the acrylic surface ready is key for great engraving results. Knowing how to clean and mask properly helps the laser work better, especially on clear materials. This guide will show you how to get your acrylic ready for engraving.

Cleaning Techniques

First, clean the acrylic well to remove dust, grease, and other stuff that could mess up the laser’s aim. There are a few ways to clean:

1. Wipe it with a soft, lint-free cloth and water or mild soap. This way, you avoid scratches.
2. For hard stains, try isopropyl alcohol on a cloth. Rub it gently.
3. Stay away from cleaners with ammonia. They can harm the acrylic.

Masking Methods

Masking is also very important, especially for clear materials. It helps control the laser and makes the design stand out. Here are some good ways to mask:

1. Painters tape: It’s great for quick masking and comes off without leaving marks.
2. Vinyl sheets: They give a smooth mask, perfect for detailed work.
3. Paper masking: It’s great for keeping charring and residue down during engraving.

Make sure the mask sticks well to avoid air bubbles. Also, pick the right color for your mask. For example, black can help reduce reflections and get finer details.

Learning these preparation steps will make your acrylic engravings look amazing. Remember, the first step to great engraving on clear materials is a well-prepared surface.

Configuring Your Laser Engraving Software

Before starting your acrylic engraving projects, setting up your laser engraving software is key. It makes your work more efficient and improves quality. You need to import designs and adjust settings correctly.

Recommended Software Options

Choosing the right laser engraving software is important. It makes your engraving work easier. Here are some top picks:

• LightBurn
• LaserGRBL
• RDWorks

LightBurn is great because it works well with many laser engravers, including Monport. It’s easy to use and has lots of support, perfect for beginners and experts.

Setting Up Your Design

To get the best results, follow these steps:

1. Import or Create a Design: Start by importing your design or making a new one in the software. It supports many file types, giving you more options.
2. Adjust Design Settings: Change settings like size, resolution, and orientation for your project. Good design configuration for laser engraving means better details and precision.
3. Material Settings: Tell the software what material and thickness you’re using. For acrylic engraving projects, getting this right is crucial for clean, precise engravings.
4. Preview and Simulate: Use the simulation to see how your design will look. This helps spot problems and make changes before you start.

Here’s a quick look at what some popular laser engraving software offers:

By following these steps and picking the right tools, you can set up your laser engraving software for top-notch results in your acrylic projects.

Laser Safety Guidelines

Following laser safety guidelines is key to protecting yourself and others when engraving. Knowing these rules helps avoid accidents and makes engraving smoother. Here are the main safety tips and gear you need for safe laser use.

Essential Safety Gear

Wearing the right safety gear is crucial for a safe laser engraving environment.

• Safety Glasses: Always wear laser safety glasses made to block your laser’s wavelength.
• Protective Clothing: Wear non-flammable clothes and gloves to avoid burns if the laser hits you by accident.
• Ventilation: Make sure you have good ventilation to avoid breathing in harmful fumes while engraving.

Operational Safety Tips

Safe laser use means following certain practices to reduce risks. Here are some tips to keep your engraving safe and efficient.

1. Read the Manual: Learn the laser engraving machine’s user manual and all safety guidelines before starting.
2. Regular Maintenance: Keep your laser engraving machine in good working order through regular maintenance.
3. Never Leave Unattended: Always stay with the laser engraving machine while it’s running. A person should be there to handle any problems.
4. Use Proper Settings: Use the right settings for your material and job to avoid accidents or damage.

By sticking to these laser safety guidelines, using the right safety gear, and following these tips, you can engrave safely and efficiently. Always put safety first when using laser engraving machines.

Fine-Tuning the Laser Settings

To get perfect engravings on clear acrylic with a diode laser, you need to fine-tune your settings. Adjusting laser power, speed, and calibration is key. We’ll explore how to make your engravings flawless.

Speed and Power Adjustments

Adjusting laser power and speed is crucial for great results. Begin by testing different levels on scrap acrylic. This saves material and helps find the best settings for your laser.

Lower speeds create deeper engravings, while higher speeds make them smoother. Finding the right balance is essential for depth and clarity.

Testing and Calibrating

Testing and calibrating are vital steps. Start by doing trial runs on samples, refining settings as you go. Regular calibration keeps your laser precise and consistent.

Use calibration techniques to get the laser’s focal point right. This is crucial for clear engravings on acrylic.

Make a reference table to keep track of your findings. Here’s an example:

This approach makes fine-tuning easier and ensures better engravings. By fine-tuning, testing, and calibrating, you’ll get the best out of your diode laser on clear acrylic.

Executing the Engraving Process

Executing acrylic engraving needs careful attention to detail. As you start, watch several factors closely for consistent quality. Key parts include

1. Pre-Engraving Checks: Make sure your diode laser engraving setup is right. Check the material’s position and the laser focus.
2. Real-Time Monitoring: Watch the engraving as it happens. You might need to adjust settings to keep quality high, based on the material’s reaction.
3. Adjustment Strategies: It’s crucial to fine-tune laser settings. You might need to tweak speed and power to avoid over-burning or incomplete engravings.

To keep the diode laser engraving smooth, watch the laser closely. If you see problems, adjust speed and power right away. This quick action helps avoid issues during engraving.

Success in acrylic engraving comes from adapting to feedback and making changes. Stay alert and quick to adjust, and you’ll get great results every time.

Post-Engraving Clean-up and Maintenance

Engraving acrylic with a diode laser is rewarding, but keeping the quality up is key. You need to remove masking material and clean the acrylic right. Also, keeping your laser engraver in good shape is vital for its long life.

Removing Masking

After engraving, you must remove the masking material carefully. Peel it off slowly to avoid scratches or residue. A gentle adhesive remover can make this easier without damaging the acrylic.

Cleaning the Engraved Acrylic

Once the mask is off, clean the acrylic to bring back its shine. Use a soft microfiber cloth to remove dust. For a deeper clean, mild soapy water works well. Make sure to rinse it off and dry the acrylic completely. Avoid harsh chemicals that could harm the acrylic.

It’s also important to maintain your laser engraving equipment. Clean the laser lens and mirrors regularly. Dust and residue can reduce performance and damage the equipment. Follow the manufacturer’s maintenance schedule to keep your laser engraver in top shape.

Conclusion

Starting with a diode laser for engraving opens up many creative paths, especially with clear acrylic. This guide has given you key insights into diode laser engraving. You now know how to pick the right laser and understand acrylic.

It also showed you how to set up your software and stay safe while engraving. Each step is aimed at helping you get precise and beautiful results. By learning these skills, you can make your clear acrylic projects truly unique.

Spending time to learn and improve these skills will make your acrylic projects better. Always keep safety and detail in mind. Soon, you’ll be making amazing pieces like a pro.
